MessageScroller

Overview

MessageScroller is a lookless ItemsControl wrapping a ScrollViewer (PART_ScrollViewer) plus a JumpToLatest button (PART_JumpToLatestButton). The web contract’s separate Provider, frame, viewport, and content parts collapse into this one class, which is simultaneously the scroll frame, the region, and the transcript log. A pure, WPF-free MessageScrollerEngine state machine, driven by real ScrollChanged geometry and by classifying INotifyCollectionChanged adds by index, implements live-edge follow, edge-threshold hysteresis, and prepend-safe offset preservation.

Usage

xmlns:scroller="clr-namespace:Navius.Wpf.Primitives.Controls.MessageScroller;assembly=Navius.Wpf.Primitives"

<scroller:NaviusMessageScroller x:Name="Transcript"
                                 AutoScroll="True"
                                 ItemsSource="{Binding Messages}"
                                 AutomationProperties.Name="Messages" />

JumpToBottom() is callable from app code (e.g. after seeding the transcript) to open at the live edge; with AutoScroll off, the view otherwise opens at the natural top.

Properties

Property	Type	Default	From	Description
AutoScroll	bool	false	NaviusMessageScroller	Follow new content only while already at the live edge. Mirrors the web’s MessageScrollerProvider.AutoScroll.
ScrollEdgeThreshold	double	8	NaviusMessageScroller	Distance in DIPs from the bottom edge that still counts as being at it.
IsFollowing	bool (read-only)	false	NaviusMessageScroller	True while the reader is at the live edge and new content pulls the view with it.
NewMessageCount	int (read-only)	0	NaviusMessageScroller	Messages appended while disengaged that the reader has not yet seen; drives the JumpToLatest badge. Reset to 0 on re-engage. Not present in the web contract (see Web deltas).

Methods

Method	Description
JumpToBottom()	Programmatic jump-to-latest: the JumpToLatest button’s own action, exposed for app code too. The WPF analog of the web’s MessageScrollerContext.ScrollToEndAsync.

Events

No CLR events on this control. State surfaces through the read-only IsFollowing and NewMessageCount dependency properties instead of an event callback surface, since the web contract itself declares no EventCallback<T> parameters for this family either (its parts communicate through a cascaded context).

Keyboard interactions

No custom key handling exists, matching the web contract exactly (it has zero custom key handlers for this family either). Arrow keys, Page Up/Down, Home, End, and Space scroll via the native ScrollViewer’s own default keyboard behavior; its increments differ from a browser’s native scrollable-div defaults, an accepted, non-regression delta. Enter/Space on the JumpToLatest button use native ButtonBase activation.

UIA mechanism

No custom automation peer: NaviusMessageScroller relies on the native ItemsControl automation peer. AutomationProperties.LiveSetting = Polite is set on the control in its constructor, mirroring the web’s role="log" aria-relevant="additions", as a fallback path for AT/OS combinations that do not support the primary announcement mechanism: when messages arrive while the reader is disengaged (not following), AnnounceNewMessages raises AutomationPeer.RaiseNotificationEvent with “N new messages” text (the same pattern the Toast and Sortable families use), requiring Windows 10 1709+ and a listening assistive technology. A still- following reader does not get an announcement per row, avoiding the noise the web docs themselves warn about. Consumers set AutomationProperties.Name directly on the control (mirroring the web Viewport’s aria-label="Messages"); no custom peer wraps this. The unit suite (tests/Navius.Wpf.Tests/MessageScrollerTests.cs, 47 test methods) exercises the engine’s follow/ disengage/re-engage transitions, edge-threshold hysteresis, prepend offset preservation via a HandleScrollChanged seam that takes plain doubles (avoiding the internal ScrollChangedEventArgs constructor), the constructor defaults, and the LiveSetting/notification wiring.

Web deltas

• The web’s six parts (Provider/root/viewport/content/item/button) collapse into one ItemsControl; there is no Provider/Context cascade because WPF’s dependency-property system covers the option-flow role and there is no cross-frame scroll-command surface to justify a separate headless root.
• Item adds are classified purely by list index: an add at the current end is new content (counts toward follow/NewMessageCount); an add at index 0 with items already present is a history prepend (anchor preserved, never counted as new). Removes, replaces, moves, and adds at any other index fall back to a plain geometry re-sync, since the web contract has no anchor-preservation rule for those cases either.
• Prepend preservation uses an extent-delta model (shifts the offset by exactly the extent growth) instead of the web engine’s captured-reference-row model; equivalent when prepended rows are inserted strictly above the viewport, the only classified case.
• Reader intent is inferred purely from unclassified, non-engine-initiated ScrollChanged events (an internal reentrancy flag distinguishes the control’s own ScrollToVerticalOffset calls), rather than from wheel/touch/key/pointerdown listeners: WPF has no need to distinguish input modality, only whether a given scroll was the engine’s own.
• Not ported: anchored-turn positioning (ScrollAnchor, ScrollPreviousItemPeek, the trailing spacer), DefaultScrollPosition, ScrollMargin, ScrollToMessageAsync and the start-direction button, and intersection-observer-based visibility tracking (CurrentAnchorId/ VisibleMessageIds). These are chat-app affordances with no consumer in this repo yet.
• NewMessageCount is new in this port, not in the web contract: the web’s scroll button is purely edge-driven (active only while more content exists in that direction) and count-free, whereas the WPF button doubles as the new-message notifier.
• The JumpToLatest button is Collapsed (not merely inert) while there is nothing to jump to. The web button stays visible but inert (tabindex="-1" plus HTML inert) in that state; WPF has no inert equivalent, and per APG a control that cannot do anything should not be in the accessibility tree at all, so full collapse was chosen as the more honest native mapping.
• No ARIA role is applied to rows on the web side, and the WPF ItemsControl’s default container likewise surfaces no interactive control type, keeping the accessibility contract equivalently minimal on both sides.

Captures

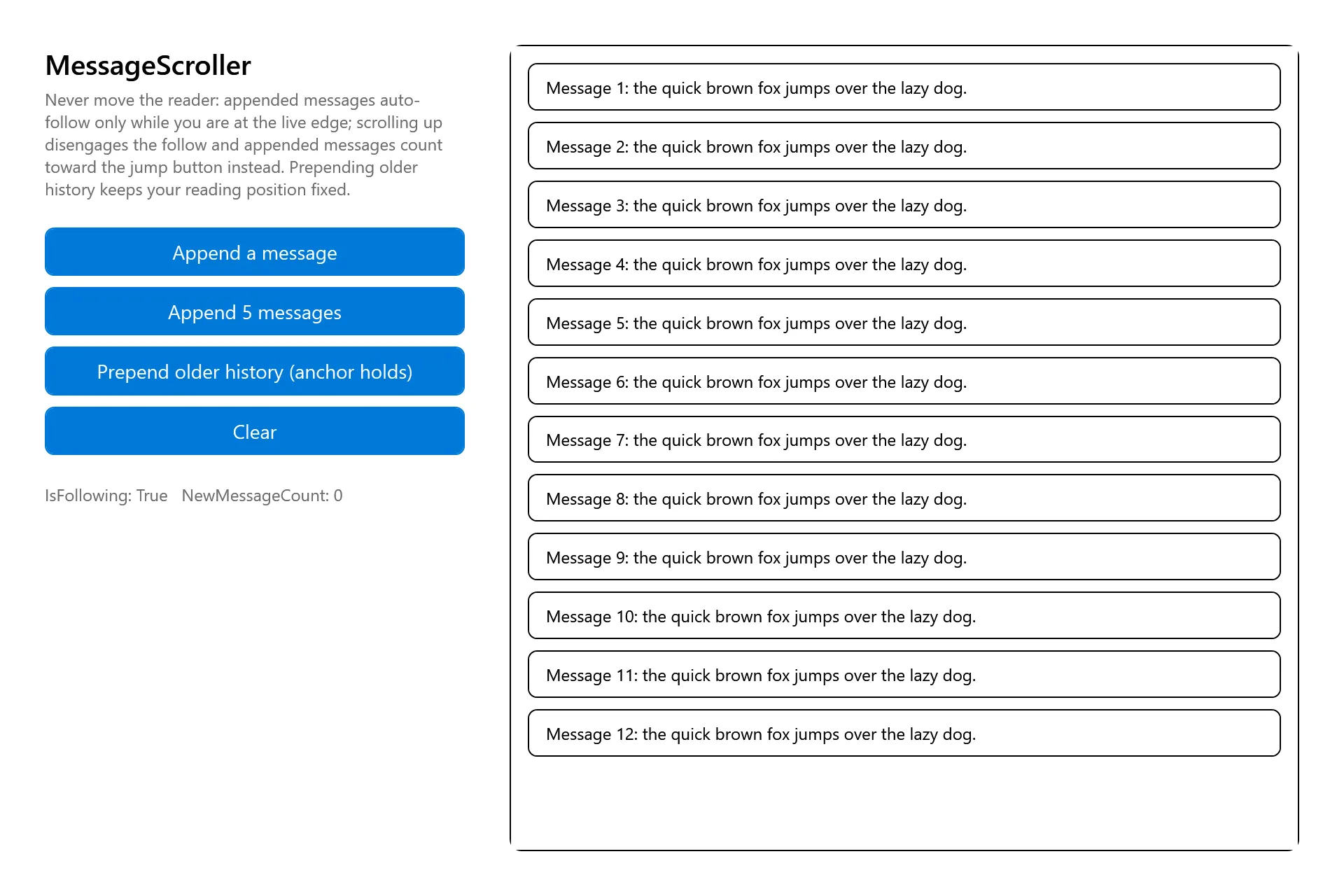

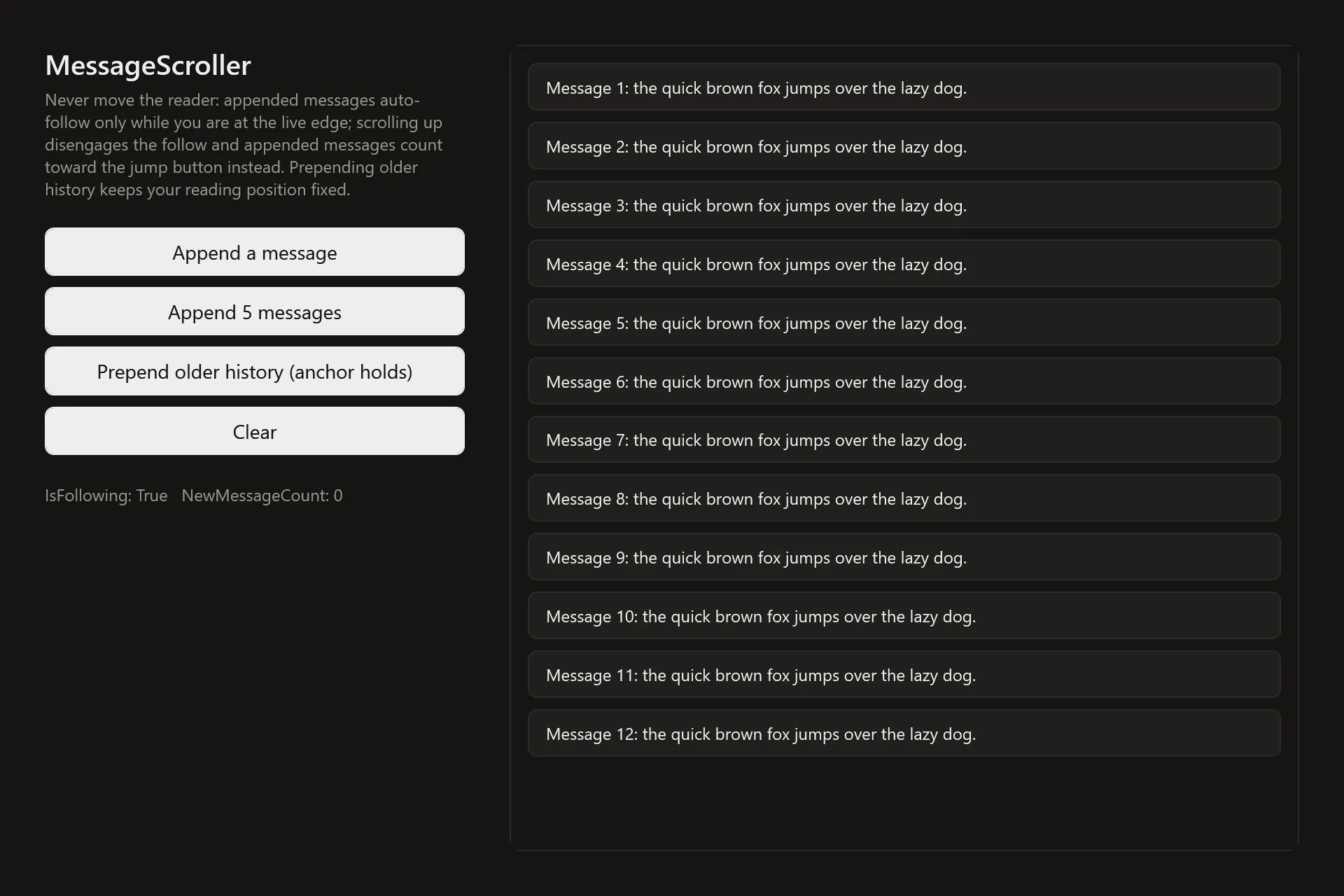

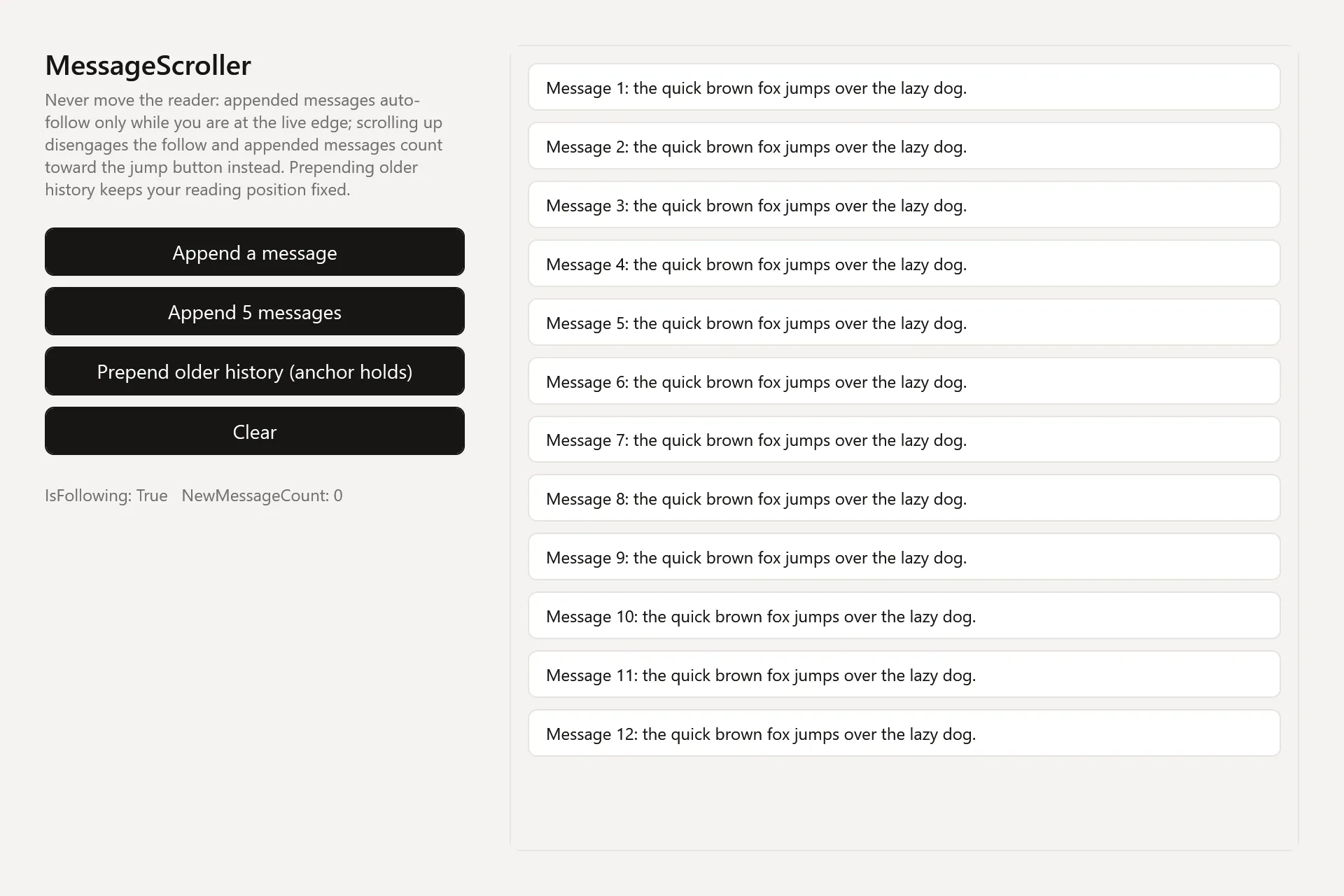

The MessageScroller Gallery page rendered at the pinned commit, in each theme.
