Dialog

Overview

Dialog is a lookless ContentControl whose own template is the backdrop plus panel; the web family’s Root/Trigger/Portal/Backdrop/Popup/Title/Description/Close parts are folded into this one control plus a CloseCommand binding. It renders inside the window’s NaviusOverlayLayer (the WPF analogue of the web’s document.body portal target) and drives modality, Escape and outside-click dismissal, and focus cycling through the shared OverlayStack.

Usage

xmlns:navius="clr-namespace:Navius.Wpf.Primitives.Controls;assembly=Navius.Wpf.Primitives"
xmlns:overlay="clr-namespace:Navius.Wpf.Primitives.Controls.OverlaySurface;assembly=Navius.Wpf.Primitives"
xmlns:dialog="clr-namespace:Navius.Wpf.Primitives.Controls.Dialog;assembly=Navius.Wpf.Primitives"

<Grid>
    <!-- app content -->
    <navius:NaviusButton Content="Open" Click="OnOpenDialog" />

    <!-- one layer per window, stretched over the root -->
    <overlay:NaviusOverlayLayer>
        <dialog:NaviusDialog x:Name="Confirm"
                             Title="Confirm change"
                             Description="This updates the shared settings.">
            <StackPanel>
                <TextBlock Text="Apply the change?" />
                <navius:NaviusButton Content="Close"
                                     Command="overlay:NaviusOverlaySurfaceBase.CloseCommand" />
            </StackPanel>
        </dialog:NaviusDialog>
    </overlay:NaviusOverlayLayer>
</Grid>

A dialog is declared as a direct XAML child of the layer (it is never re-parented at runtime) and stays Collapsed until opened via IsOpen, Open(), or a binding. A window with no NaviusOverlayLayer still parses; opening then logs a Trace.TraceWarning and reverts IsOpen to false.

Properties

Property	Type	Default	From	Description
IsOpen	bool	false	NaviusOverlaySurfaceBase	Open state. Two-way bindable by default. Setting it engages or disengages the overlay; a canceled Closing reverts it to true so the DP never desyncs from the live overlay.
Title	string?	null	NaviusOverlaySurfaceBase	Accessible name. Applied via AutomationProperties.Name on engage.
Description	string?	null	NaviusOverlaySurfaceBase	Accessible help text. Applied via AutomationProperties.HelpText on engage.
Modal	bool	true	NaviusDialog	When true: focus is trapped, the backdrop shows, outside interaction is blocked. When false: no trap, no backdrop, outside content stays interactive.
CloseOnOutsideClick	bool	true	NaviusDialog	Whether a press outside the panel dismisses the dialog. Independently overridable, matching the web contract’s optional outside dismissal.
Content	object	-	ContentControl	The dialog body.

Methods

Method	Description
Open()	Sets IsOpen to true via SetCurrentValue, preserving an existing two-way binding.
Close()	Sets IsOpen to false via SetCurrentValue, preserving an existing two-way binding.

Commands

Command	Description
NaviusOverlaySurfaceBase.CloseCommand	Bind any element inside Content to request a close, mirroring the web’s NaviusDialogClose part.

Events

Event	Signature	Fires when
Opened	EventHandler	The overlay has engaged: pushed onto the OverlayStack, enter animation started.
Closing	EventHandler<OverlayClosingEventArgs>	A close was requested (Escape, outside press, CloseCommand, or IsOpen = false). Cancelable: set Cancel to keep the dialog open; IsOpen then stays true.
Closed	EventHandler	The exit animation completed and the surface left its layer.

Keyboard interactions

Key	Behavior
Escape	Closes the dialog. Routed through the window-level OverlayStack PreviewKeyDown hook; fixed on (not configurable), matching the parity contract.
Tab / Shift + Tab	Cycles focus among the dialog’s focusable descendants while modal, via KeyboardNavigationMode.Cycle applied by the OverlayStack focus trap.

UIA mechanism

NaviusDialogAutomationPeer (a FrameworkElementAutomationPeer) reports AutomationControlType.Window and overrides IsDialogCore() to return true, the native mapping for the web’s role="dialog". On engage, Title and Description are applied as AutomationProperties.Name and AutomationProperties.HelpText, which the default peer surfaces without further overrides; the same treatment applies uniformly across Dialog, AlertDialog, and Drawer. Focus moves to the first focusable descendant on open and is restored on close while modal. The unit suite exercises this against real windows, including the M6 regression for a canceled Closing keeping IsOpen, the surface, and the session consistent.

Web deltas

• One control instead of eight parts: the web’s Root/Trigger/Portal/Backdrop/Popup/ Title/Description/Close anatomy is folded into NaviusDialog plus CloseCommand, following the same shape this codebase uses for NaviusRadioGroup and NaviusCheckboxGroup. There is no discrete Trigger element; any button or binding opens the dialog.
• NaviusOverlayLayer replaces the web’s CSS-selector Container parameter: a window registers at most one layer, and surfaces are declared as its direct XAML children. System.Windows.Controls.Primitives.Popup hosting was rejected because a Popup renders through its own top-level surface, invisible to the OverlayStack’s window-level key and outside-press routing.
• Title and Description are string properties feeding UIA name and help text, not mounted sub-elements with generated id wiring (aria-labelledby and aria-describedby have no WPF equivalent).
• Enter and exit transitions are a fixed 150ms opacity fade via DoubleAnimation (exit completion is what unmounts, so it is never truncated); the web drives these from data-starting-style and data-ending-style CSS hooks. The primitive does not reference Navius.Wpf.Motion.
• CloseOnEscape is fixed true and not exposed (the web family never overrides it either); CloseOnOutsideClick is exposed as a property.
• Known residual (M6 audit): a non-modal dialog (Modal="false") does not restore focus to the previously focused element on close, because the OverlayStack only captures a restore target when trapping focus. The web contract restores focus in both paths.

Captures

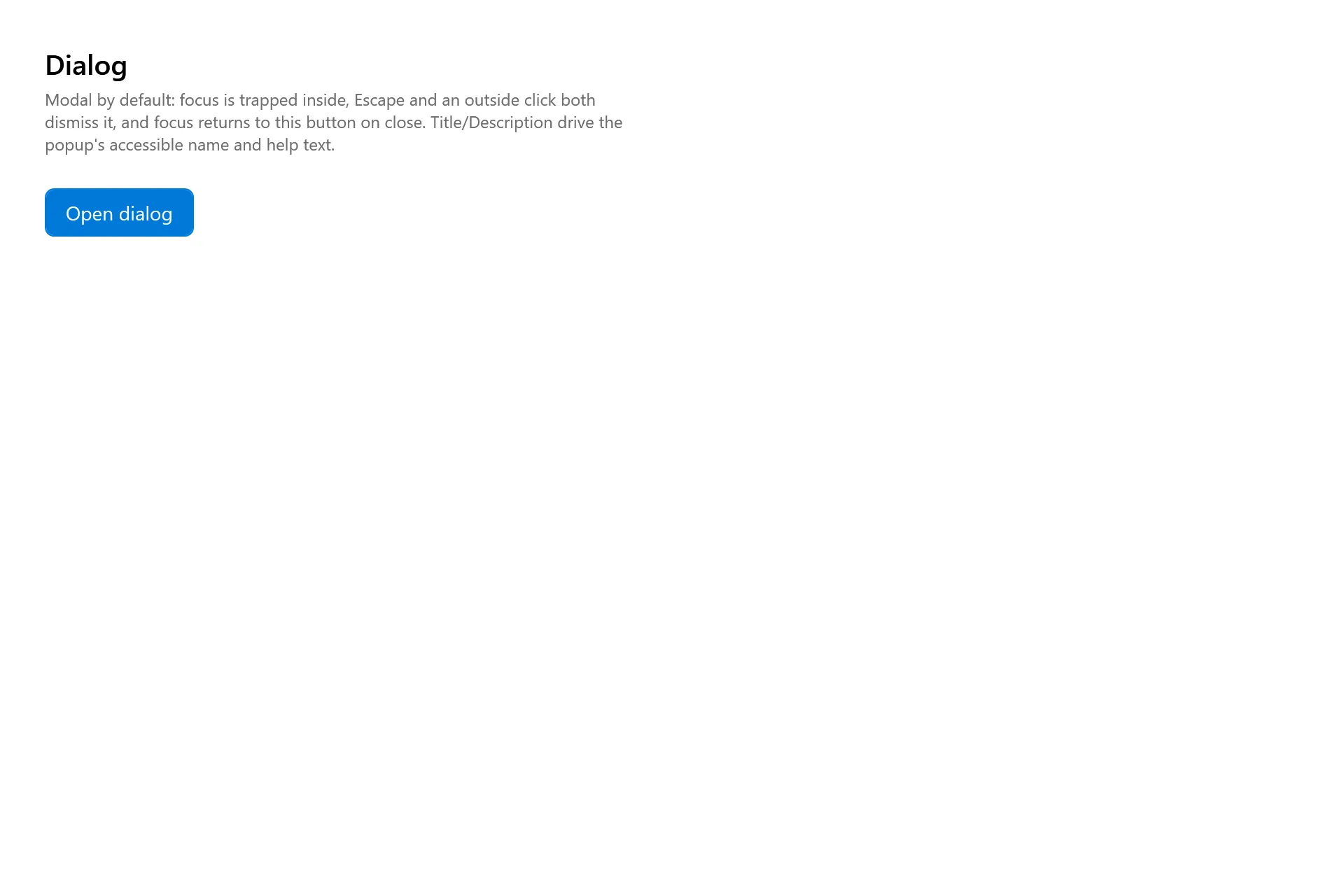

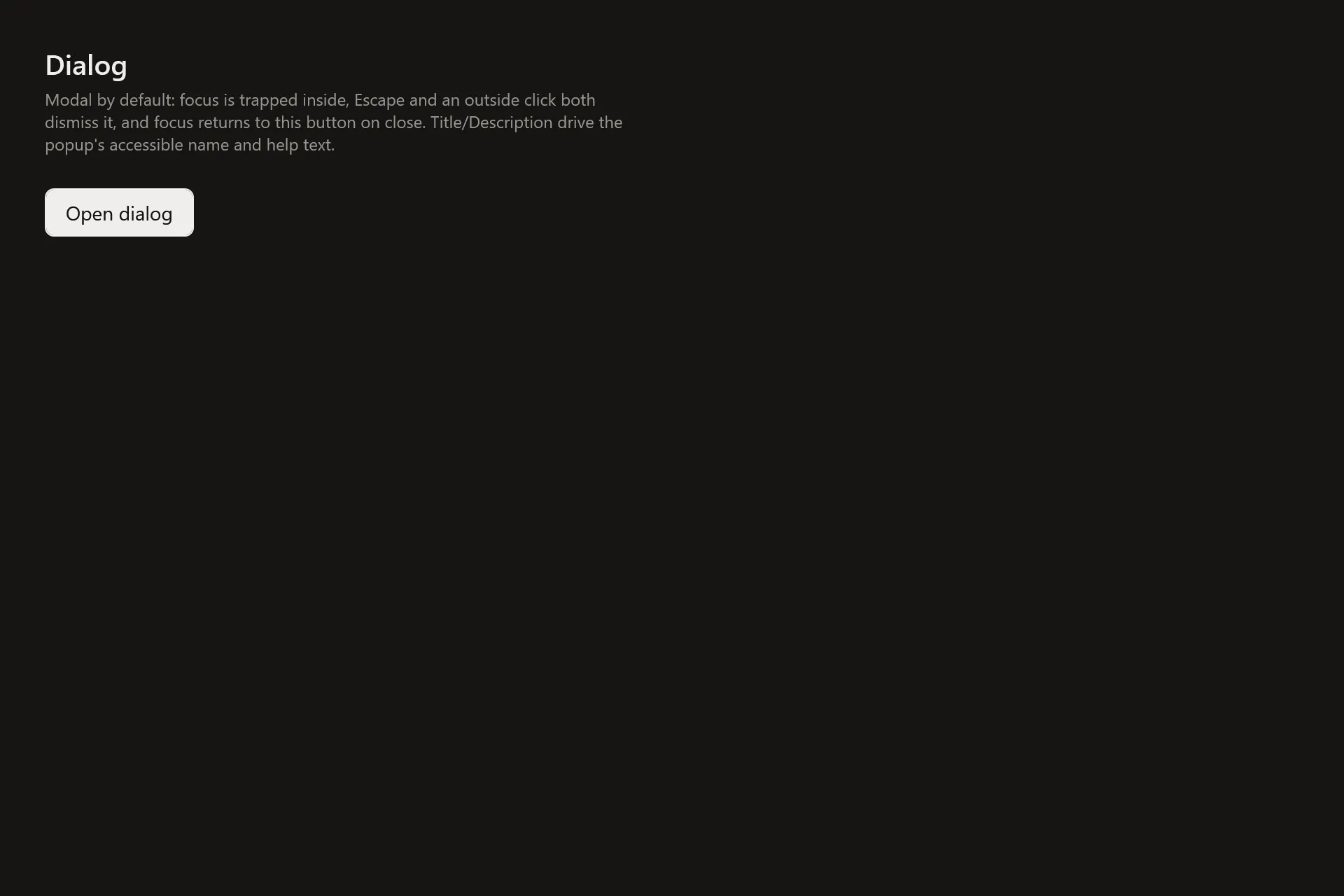

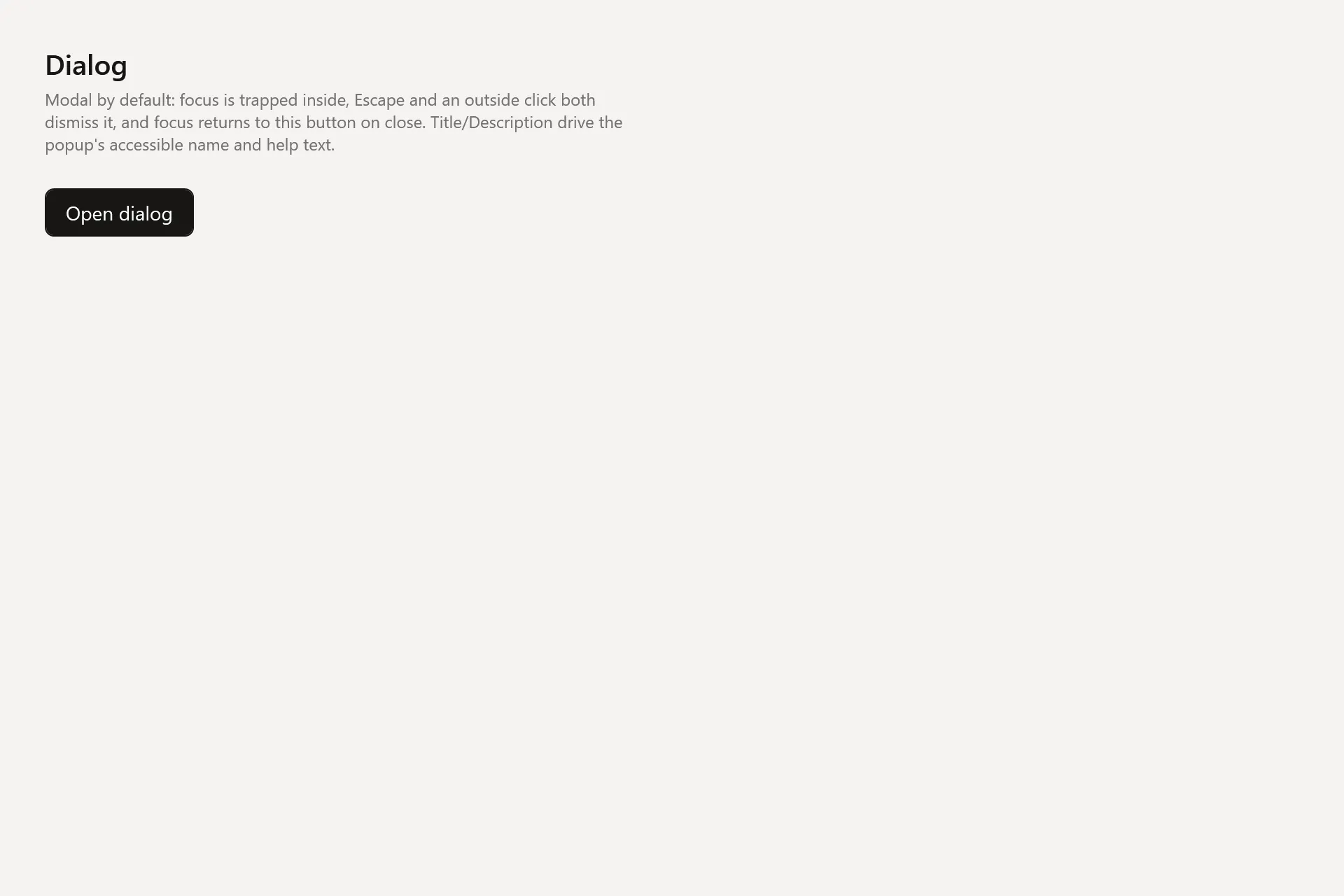

The Dialog Gallery page rendered at the pinned commit, in each theme.
