Slider

Overview

Slider derives directly from the native Slider (Tier A), inheriting RangeBase value coercion, the Track/Thumb drag machinery, and SliderAutomationPeer’s UIA RangeValuePattern mapping. This M1 release is single-thumb only; multi-thumb range sliders, the web contract’s core feature, are deferred.

Usage

xmlns:navius="clr-namespace:Navius.Wpf.Primitives.Controls;assembly=Navius.Wpf.Primitives"

<navius:NaviusSlider x:Name="Volume"
                      Value="{Binding Volume, Mode=TwoWay}"
                      Minimum="0" Maximum="100" Step="5"
                      ValueCommitted="OnVolumeCommitted" />

Properties

Property	Type	Default	From	Description
Value	double	0	System.Windows.Controls.Primitives.RangeBase	Current value. Two-way bindable by default.
Minimum	double	0	System.Windows.Controls.Primitives.RangeBase	-
Maximum	double	100	System.Windows.Controls.Slider	Overridden from the native Slider’s default of 10 to match the contract’s Max default.
Step	double	1	NaviusSlider	Keyboard/drag increment, kept in sync with the inherited SmallChange and TickFrequency so pointer-drag snapping (IsSnapToTickEnabled, forced true) uses the same value.
LargeStep	double	0	NaviusSlider	0 means the contract heuristic (max(Step, 10% of range snapped to Step)) is used via EffectiveLargeStep.
MinStepsBetweenThumbs	int	0	NaviusSlider	Navius extension for a future multi-thumb build; a no-op in this single-thumb release (no adjacent thumb to separate from).
EffectiveLargeStep (read-only)	double	-	NaviusSlider	Computed large-step value: the explicit LargeStep when > 0, otherwise NaviusSliderKeyboard.ComputeEffectiveLargeStep(LargeStep, Step, Minimum, Maximum).
IsDirectionReversed (inherited)	bool	false	System.Windows.Controls.Slider	Native property used directly for the contract’s Inverted; arrow-key direction flips when true.

Events

Event	Signature	Fires when
ValueCommitted	RoutedPropertyChangedEventHandler<double>	On Thumb.DragCompleted (pointer-up) or immediately after any keyboard edit; distinct from the inherited per-change ValueChanged.

Keyboard interactions

Key	Behavior
ArrowRight / ArrowUp	+Step (flips under IsDirectionReversed).
ArrowLeft / ArrowDown	-Step (flips under IsDirectionReversed).
Shift + Arrow (any direction key)	Uses EffectiveLargeStep instead of Step.
PageUp	+EffectiveLargeStep. Does not flip under IsDirectionReversed.
PageDown	-EffectiveLargeStep. Does not flip under IsDirectionReversed.
Home	Jump to Minimum. Does not flip.
End	Jump to Maximum. Does not flip.

Every key edit clamps to [Minimum, Maximum] and commits immediately (fires ValueCommitted). OnKeyDown is fully overridden rather than delegated to the base Slider’s key handling.

UIA mechanism

No custom AutomationPeer: NaviusSlider inherits SliderAutomationPeer, mapping to UIA RangeValuePattern (aria-valuemin/max/now parity). The unit suite exercises NaviusSliderKeyboard.TryGetTargetValue directly (a pure static function, tested without constructing real KeyEventArgs, which require a live PresentationSource) for every table entry including RTL/Inverted direction flips, ComputeEffectiveLargeStep, Step’s sync to SmallChange/TickFrequency, the Maximum = 100 override, and ValueCommitted firing on both Thumb.DragCompleted and keyboard edits. The control-level OnKeyDown wiring itself has no KeyEventArgs-level integration test, a stated pure-logic-first tradeoff rather than a gap.

Web deltas

• Multi-thumb range sliders, the web contract’s core feature, are deferred: NaviusSlider is single-thumb only. MinStepsBetweenThumbs exists as a dependency property for API parity but is a no-op.
• Residual (M6 audit, not fixed): RTL is documented as using native FlowDirection directly, but OnKeyDown passes only IsDirectionReversed into the keyboard logic. A horizontal slider set to FlowDirection.RightToLeft with IsDirectionReversed=false does not mirror ArrowLeft/Right, unlike the web contract’s “flips under RTL for horizontal, or Inverted.” The sibling Tabs handler does fold FlowDirection == RightToLeft into its RTL mirror, so the two families are inconsistent on this point; left as residual, not fixed, since the correct OR-vs-XOR combination of RTL and Inverted was not nailed down against the web source.
• Inverted is not duplicated as a wrapper property; consumers set the native IsDirectionReversed directly.
• Hidden <input> form-submission mirroring (Name/Form) is dropped entirely; no WPF form-submission model.
• PART_Range is Track.DecreaseRepeatButton (a RepeatButton) restyled to a plain filled bar; unlike the web’s purely decorative <span> range, it stays clickable/page-steppable like a normal RepeatButton, a minor behavioral difference.
• A vertical NaviusSlider rotates the whole horizontal template visual tree 270 degrees via a LayoutTransform rather than shipping a second vertical template; Track’s own value-to-position math is unaffected since it never observes an orientation change.
• Attributes splat is dropped.

Captures

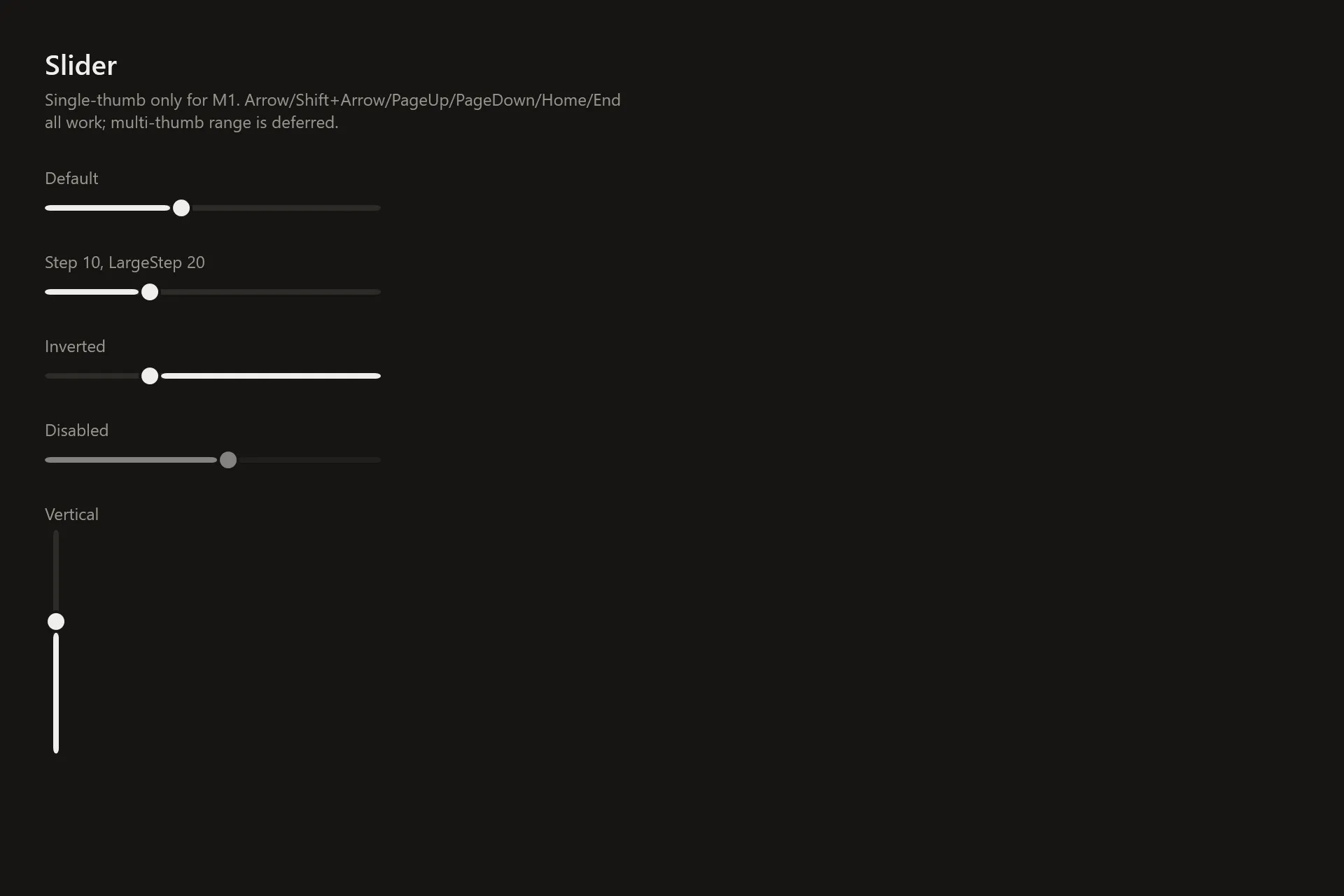

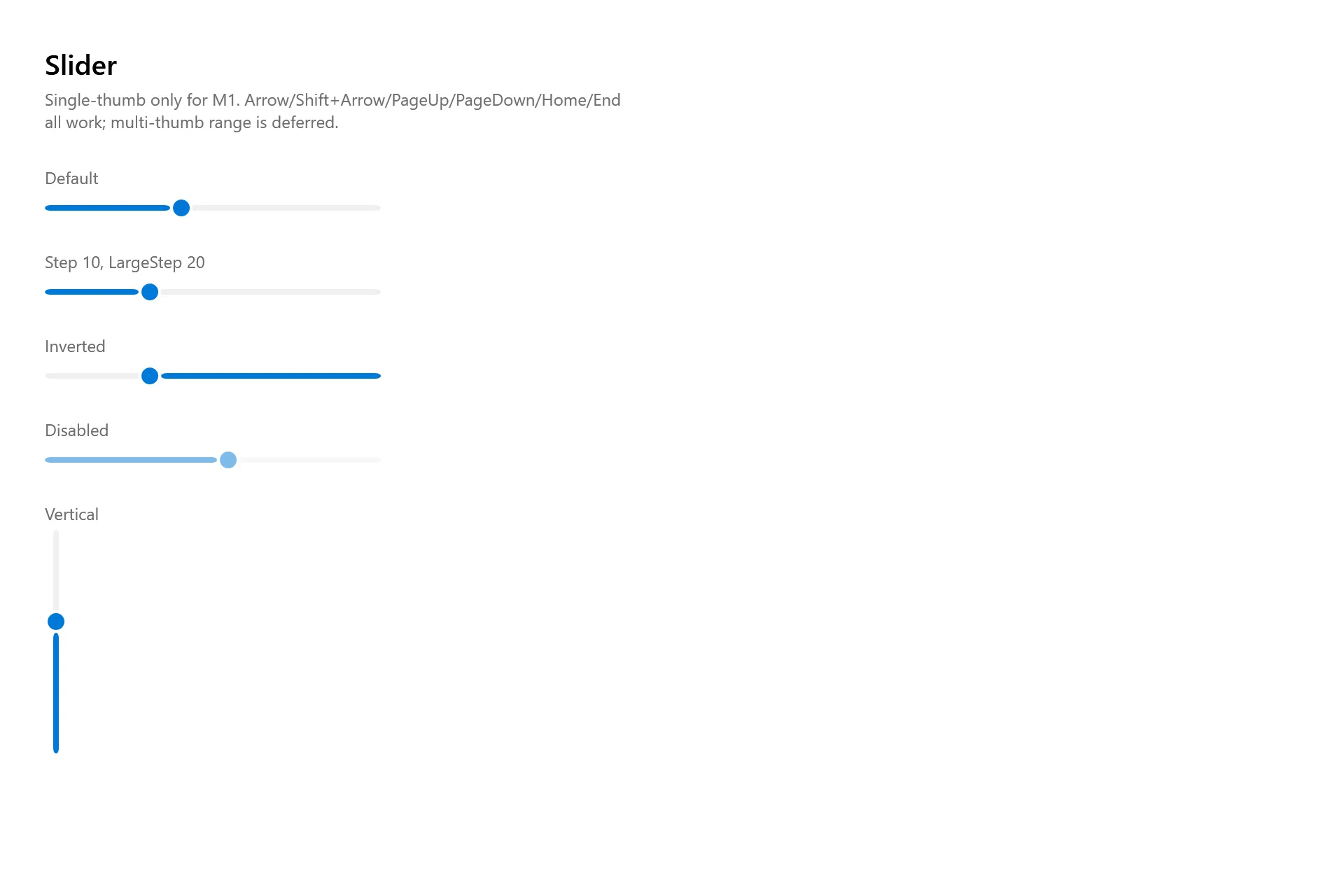

The Slider Gallery page rendered at the pinned commit, in each theme.
