TimePicker

Overview

TimePicker collapses the web contract’s five-part shell (Root/Input/Trigger/Content/Column) onto one templated Control: PART_Input is a real embedded NaviusTimeInput bound two-way to Value/Granularity/HourCycle/MinuteStep/SecondStep so typed edits and popup column selections share one value with no extra glue, PART_Trigger is a ToggleButton opening a NaviusAnchoredPopup, and each unit column (PART_HourColumn/PART_MinuteColumn/ PART_SecondColumn/PART_DayPeriodColumn) is a themed native ListBox populated from the pure TimePickerOptionBuilder rather than a hand-rolled option/column pair.

Usage

xmlns:timePicker="clr-namespace:Navius.Wpf.Primitives.Controls.TimePicker;assembly=Navius.Wpf.Primitives"

<timePicker:NaviusTimePicker Value="{Binding AppointmentTime, Mode=TwoWay}"
                             Granularity="minute"
                             MinuteStep="15" />

Properties

Property	Type	Default	From	Description
Value	TimeOnly?	null	NaviusTimePicker	Two-way bindable by default.
IsOpen	bool	false	NaviusTimePicker	Two-way bindable.
Granularity	string	"minute"	NaviusTimePicker	"hour"/"minute"/"second"; controls which columns render.
HourCycle	int?	null	NaviusTimePicker	12 or 24; null defaults to the culture’s short-time pattern sniff.
MinuteStep	int	1	NaviusTimePicker	Clamped to >= 1 when rebuilding the minute column’s options.
SecondStep	int	1	NaviusTimePicker	Clamped to >= 1.
Culture	CultureInfo?	null (→ CultureInfo.CurrentCulture)	NaviusTimePicker
EffectiveHourCycle	int	-	NaviusTimePicker	Read-only CLR property: the resolved 12/24 in effect right now.
IsEnabled	-	-	Control	No Disabled DP: native IsEnabled is used directly, matching the NaviusSelectBase/NaviusNumberField precedent.

Events

Event	Signature	Fires when
ValueChanged	RoutedPropertyChangedEventHandler<TimeOnly?>	Whenever the composed value changes, from either typed input or column selection.
OpenChanged	RoutedPropertyChangedEventHandler<bool>	When IsOpen changes.

Keyboard interactions

Key	Behavior
Enter / Space / ArrowDown (embedded input or trigger, popup closed)	Delegated to the embedded NaviusTimeInput’s own segment keyboard model, or opens the popup via the trigger.
ArrowUp / ArrowDown (a column, popup open)	Native ListBox selection navigation, one item at a time.
Home / End (a column)	Native ListBox jump to first/last item.
Digit 0-9 (a column)	Native ListBox TextSearch typeahead, kept as-is rather than the web’s custom buffer-reset Typeahead() logic; native reset timing differs slightly but functionally satisfies “type digits, jump to the matching option”.
Enter / Space (a column item)	Native ListBoxItem selection, which commits that unit via OnColumnSelectionChanged.
Escape (popup open)	Closes the popup via the inherited overlay/session dismissal, not a custom key handler in this class.

UIA mechanism

NaviusTimePickerAutomationPeer reports AutomationControlType.ComboBox (the same shape as NaviusSelectAutomationPeer, since both controls are trigger+popup+value shells) plus a read-only IValueProvider surfacing the composed HH:mm:ss text and IExpandCollapseProvider over IsOpen. Each column is a native ListBox, so its ListBoxAutomationPeer/ListBoxItemAutomationPeer already report SelectionPattern (the UIA analog of role="listbox"/role="option") with no custom peer needed; roving tabindex and Up/Down/Home/End navigation come from ListBox natively. Verified by TimePickerTests.cs: 5 [Fact] tests for TimePickerOptionBuilder, 10 [StaFact] tests for the control (column visibility per granularity/hour-cycle, value-to-column sync both directions, MinuteStep-driven option rebuilding, the embedded PART_Input wiring) and the automation peer’s ComboBox type, ValuePattern, and ExpandCollapse round-trip.

Web deltas

• No separate NaviusTimePickerColumn/NaviusTimePickerOption CLR types: each column is a themed native ListBox populated from TimePickerOptionBuilder; ListBoxItem stands in for NaviusTimePickerOption, with roving tabindex and role="listbox"/"option"-equivalent automation coming from ListBox natively instead of being reimplemented.
• Native ListBox TextSearch typeahead is kept rather than reimplementing the web’s custom per-keystroke buffer-reset Typeahead() logic; the reset timing differs slightly (a short pause vs. per-keystroke) but functionally satisfies the same “type digits, jump to option” behavior.
• The web’s Highlighted-vs-Selected two-state distinction (roving-active vs. actually-chosen unit) collapses to one state: native ListBox/ListBoxItem selection already conflates roving-focus and the chosen value together on Arrow keys, matching the platform’s own interaction model rather than fighting it.
• No Disabled DP: native IsEnabled is used directly, matching the NaviusSelectBase/ NaviusNumberField precedent in this repo rather than the web contract’s separate Disabled bool parameter.
• ValuePattern on the root is a WPF-only addition (not asserted by the web contract, which relies on the DOM subtree instead): required because a template-only control otherwise exposes nothing over UIA (the M3 gate finding referenced by this family’s own parity doc).
• Known residual: column keyboard behavior (Up/Down/Home/End/typeahead, Enter/Space activation) is entirely native ListBox behavior with no custom handler, so it was not independently re-tested by the M6 audit beyond confirming it is reachable and functionally correct; native TextSearch’s buffer-reset timing specifically was not verified bit-for-bit against the web’s custom buffer.

Captures

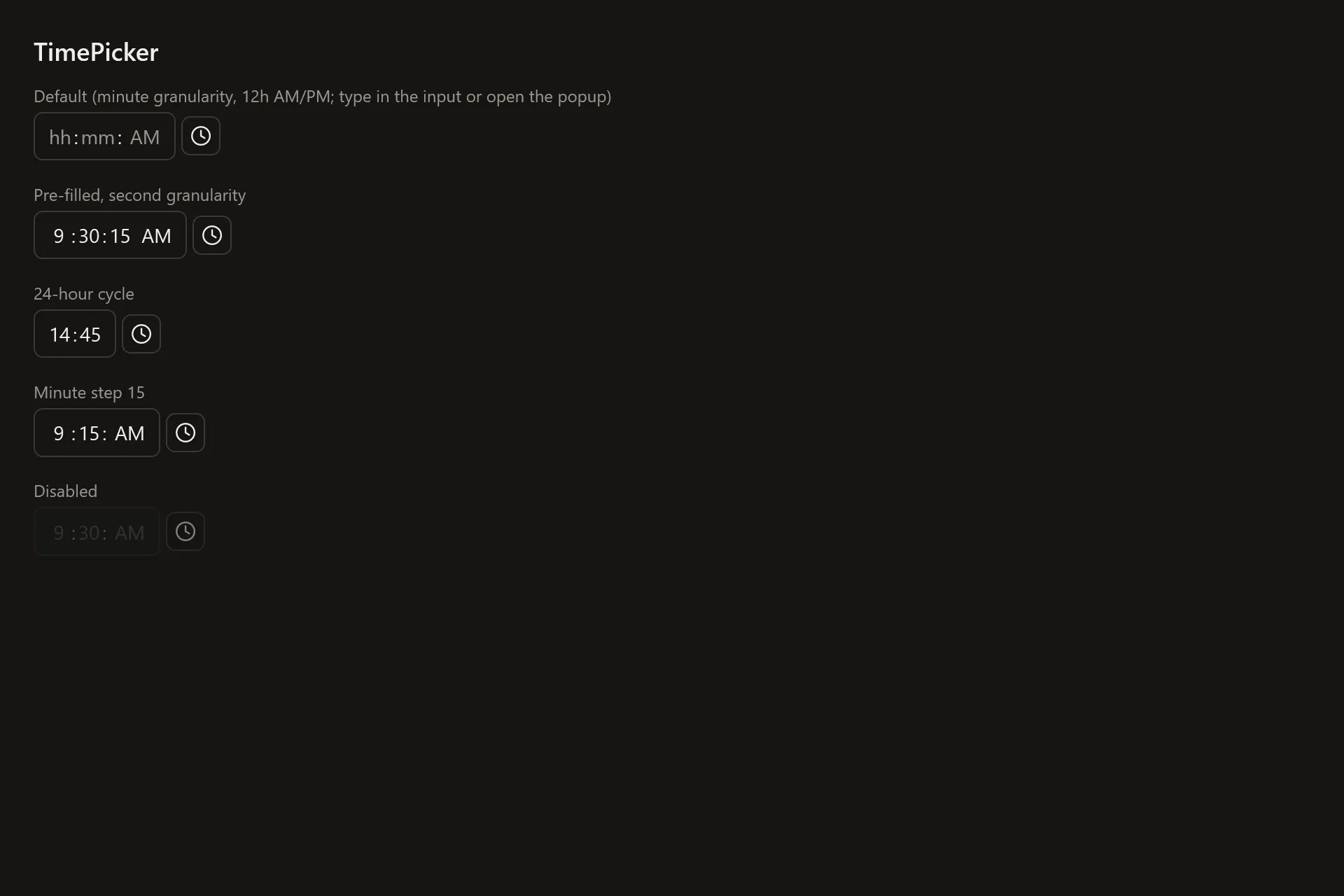

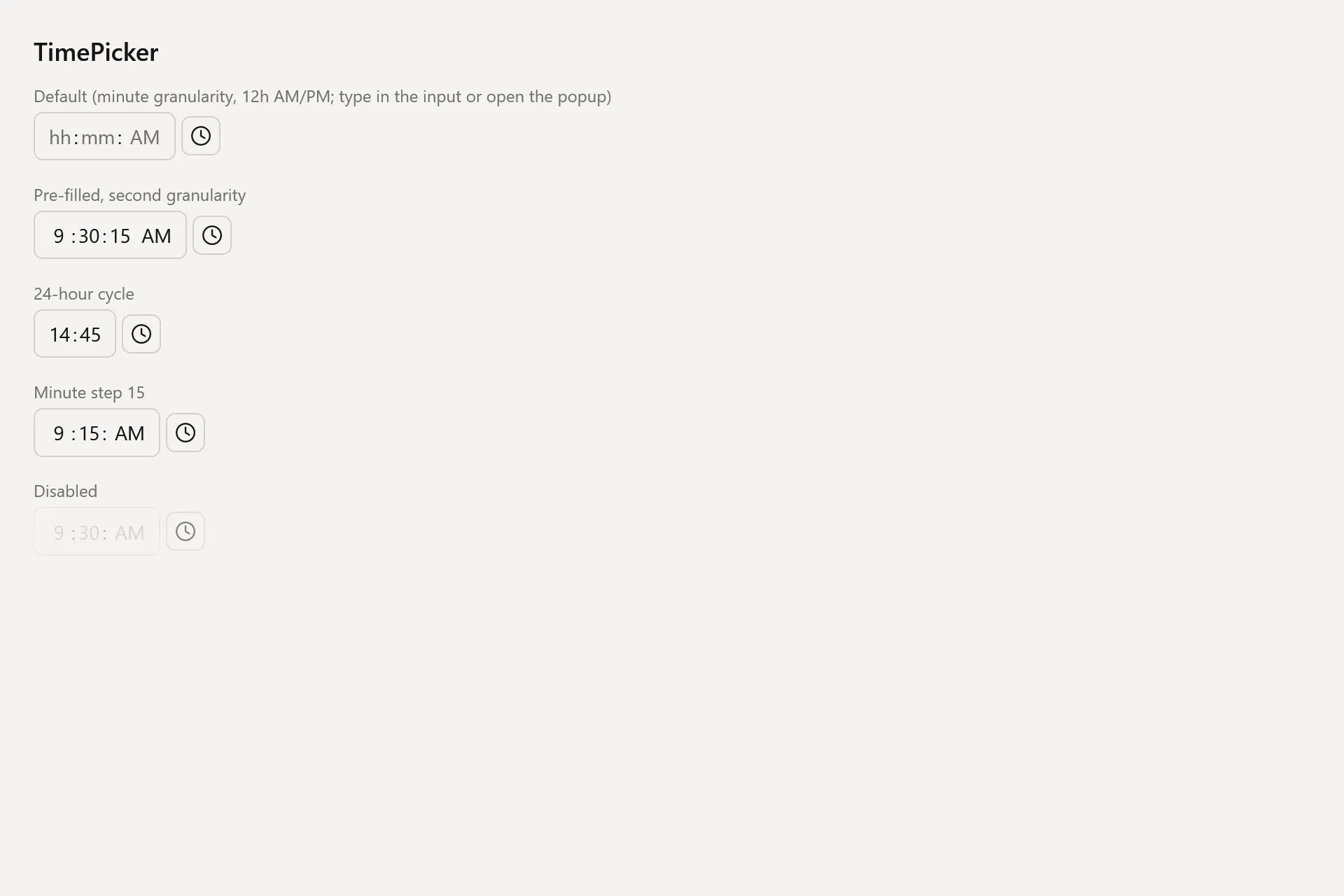

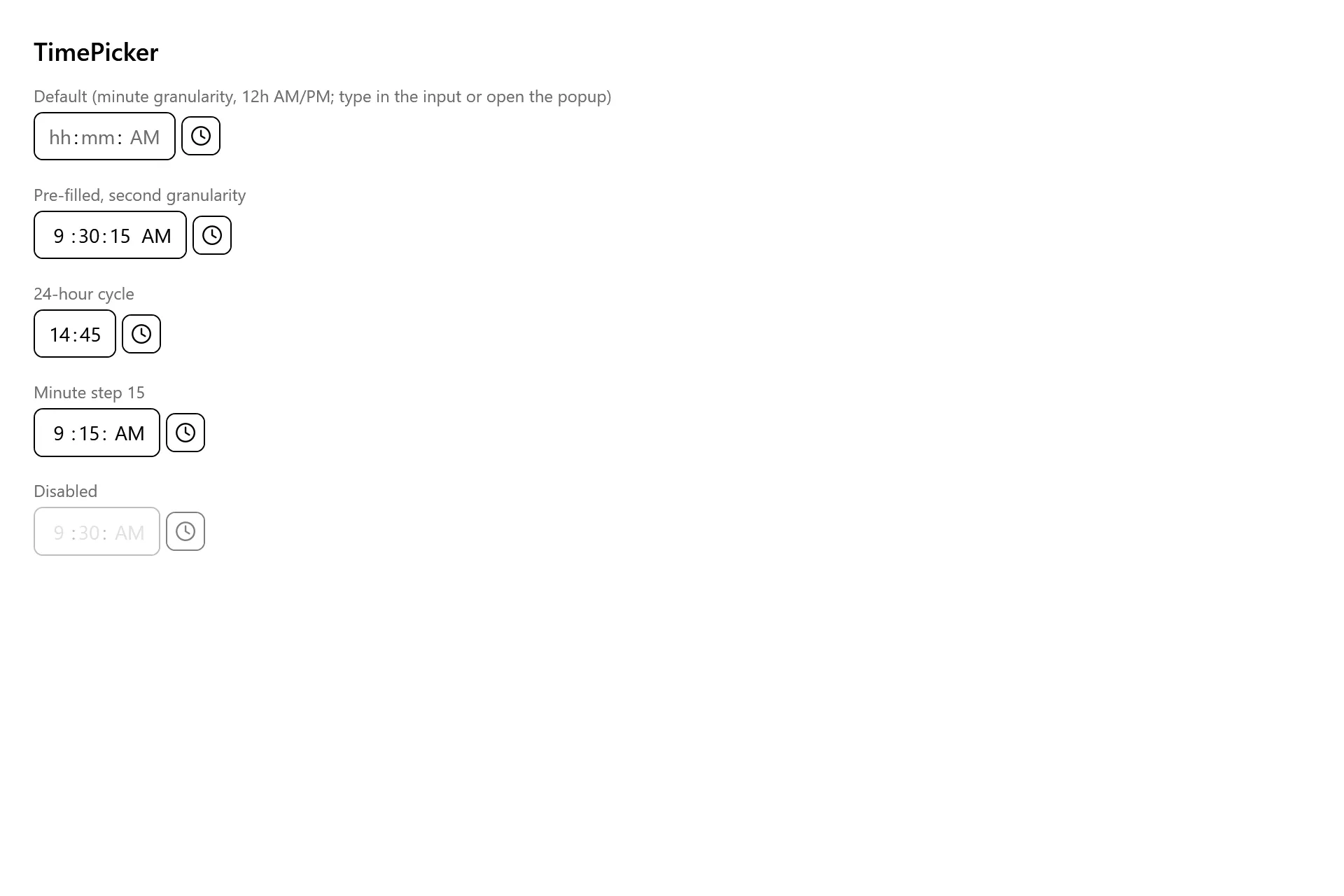

The TimePicker Gallery page rendered at the pinned commit, in each theme.
