TimeInput

Overview

TimeInput is NaviusDateInput’s time-editing sibling: the same shared SegmentMath/ DateTimeSegment engine and NaviusFieldSegment cell type (Controls/DateInput/NaviusFieldSegment.cs), but its own independent root building an hour/minute/ second/day-period layout (12h or 24h, per culture or an explicit HourCycle) instead of year/ month/day. The two roots stay independent rather than sharing a base class, since their layout-building and Compose() targets (DateOnly? vs TimeOnly?) differ enough that a shared base would mostly be pass-through plumbing.

Usage

xmlns:timeInput="clr-namespace:Navius.Wpf.Primitives.Controls.TimeInput;assembly=Navius.Wpf.Primitives"

<timeInput:NaviusTimeInput Value="{Binding StartTime, Mode=TwoWay}"
                           Granularity="minute"
                           MinuteStep="5" />

Properties

Property	Type	Default	From	Description
Value	TimeOnly?	null	NaviusTimeInput	Two-way bindable by default.
Granularity	string	"minute"	NaviusTimeInput	"hour", "minute", or "second"; rebuilds the segment layout at runtime.
HourCycle	int?	null	NaviusTimeInput	12 or 24; null defaults to the culture’s ShortTimePattern sniff ('H' present => 24), via DateTimeFormatInfo identically to .NET’s own culture data.
MinuteStep	int	1	NaviusTimeInput	Arrow step for the minute segment; rebuilds the layout when changed.
SecondStep	int	1	NaviusTimeInput	Arrow step for the second segment.
MinValue	TimeOnly?	null	NaviusTimeInput	Drives IsOutOfRange/IsInvalidState; never clamps.
MaxValue	TimeOnly?	null	NaviusTimeInput	Same, upper bound.
PlaceholderValue	TimeOnly?	null (→ DateTime.Now)	NaviusTimeInput	Basis an empty segment jumps to on the first Arrow key.
ReadOnly	bool	false	NaviusTimeInput	Blocks every segment key.
Required	bool	false	NaviusTimeInput	Drives IsInvalidState’s ValueMissing signal: Required && Value is null, the same contract NaviusDateInput uses.
Invalid	bool	false	NaviusTimeInput	ORed into IsInvalidState alongside IsOutOfRange and the Required-driven ValueMissing signal.
ForceLeadingZeros	bool	false	NaviusTimeInput
Culture	CultureInfo?	null (→ CultureInfo.CurrentCulture)	NaviusTimeInput
Name	string?	null	NaviusTimeInput	Marker-only, no native-form mirror.
IsFilled	bool	false	NaviusTimeInput	Read-only.
IsOutOfRange	bool	false	NaviusTimeInput	Read-only.
IsInvalidState	bool	false	NaviusTimeInput	Read-only. Invalid || IsOutOfRange || (Required && Value is null).
EffectiveHourCycle	int	-	NaviusTimeInput	Read-only CLR property (not a DP): the resolved 12/24 in effect right now.
IsEnabled	-	-	Control	Disabled is not a separate DP: maps onto the inherited Control.IsEnabled.
FlowDirection	-	-	Control (FrameworkElement)	Dir is not a separate DP: native FlowDirection drives ArrowLeft/ArrowRight mirroring.

Methods

Method	Description
FocusFirstSegment()	Focuses the first editable segment cell.

Events

Event	Signature	Fires when
ValueChanged	RoutedPropertyChangedEventHandler<TimeOnly?>	When the composed value changes on a committing keystroke.

Keyboard interactions

Numeric segments (hour, minute, second):

Key	Behavior
ArrowUp	+ArrowStep (MinuteStep/SecondStep for those segments), wraps at [Min, Max]; an empty segment reveals the placeholder basis.
ArrowDown	-ArrowStep, same rule.
PageUp / PageDown	Larger step, same wrap rule.
Home / End	Jump to Min / Max.
Backspace / Delete	Clear to unfilled.
ArrowLeft / ArrowRight	Move focus to the previous/next segment (flipped under FlowDirection.RightToLeft).
Digit 0-9	Appends to the type buffer; auto-advances on an early bound-exceeded candidate or on reaching the max digit count.

Day-period segment (AM/PM):

Key	Behavior
ArrowUp / ArrowDown	Toggle AM/PM (modeled as a 0/1 range); an empty segment reveals AM first.
A / P	Set AM / PM directly.
Backspace / Delete	Clear to unfilled.
ArrowLeft / ArrowRight	Move focus, same as numeric segments.

Segment-to-segment ArrowLeft/Right focus travel is confirmed against a real hosted window by the M6-audit-added TimeInputTests.SegmentArrowKeys_MoveFocusBetweenSegments.

UIA mechanism

NaviusTimeInputAutomationPeer reports AutomationControlType.Group plus a read-only IValueProvider surfacing the composed value as HH:mm:ss. Each segment shares NaviusFieldSegment’s own peer (Spinner + IRangeValueProvider), including the day-period segment, modeled as a 0/1 range over the same peer type rather than a second pattern. Verified by TimeInputTests.cs: 8 [Fact] tests for BuildTimeLayout/TimeSegmentComposer, 9 [StaFact] tests for the control (both hour cycles, digit typing, AM/PM letter-key toggling, ReadOnly lockout, MinuteStep-driven increment) and the automation peer’s ValuePattern, the M6-audit-added hosted-focus regression for ArrowLeft/Right segment navigation, and three [StaFact] tests locking Required’s ValueMissing contract (empty required value, non-required empty value, composed required value).

Web deltas

• Same deltas as NaviusDateInput: no NaviusBubbleInput, no ambient NaviusField (FocusFirstSegment() stands in for Field.FocusControl), Dir is native FlowDirection, placeholder tokens replace the literal "Empty" aria-valuetext.
• The day-period (AM/PM) segment is modeled over the same IRangeValueProvider as numeric segments (Minimum=0/Maximum=1) rather than a second peer/pattern type, since ArrowUp/Down already treat it as a 2-state range.
• Segment row RTL fix (ADR-0006): Themes/TimeInput.xaml’s PART_Segments panel is pinned to FlowDirection="LeftToRight", the same fix applied to DateInput.xaml, so the hour/minute/ second/day-period row never mirrors under an ambient RTL FlowDirection while arrow-key focus travel still honors it. Locked in by TimeInputTests.cs’s PartSegments_FlowDirectionPinnedToLeftToRight_* and PartSegments_ChildOrder_UnaffectedByFlowDirection.
• Required drives IsInvalidState’s ValueMissing signal (Required && Value is null), matching the fix already applied to the sibling NaviusDateInput in that family’s own M6 audit; a parity-vs-code discrepancy found during the original extraction (Required was declared but not read anywhere in UpdateComputedState) has since been closed.

Captures

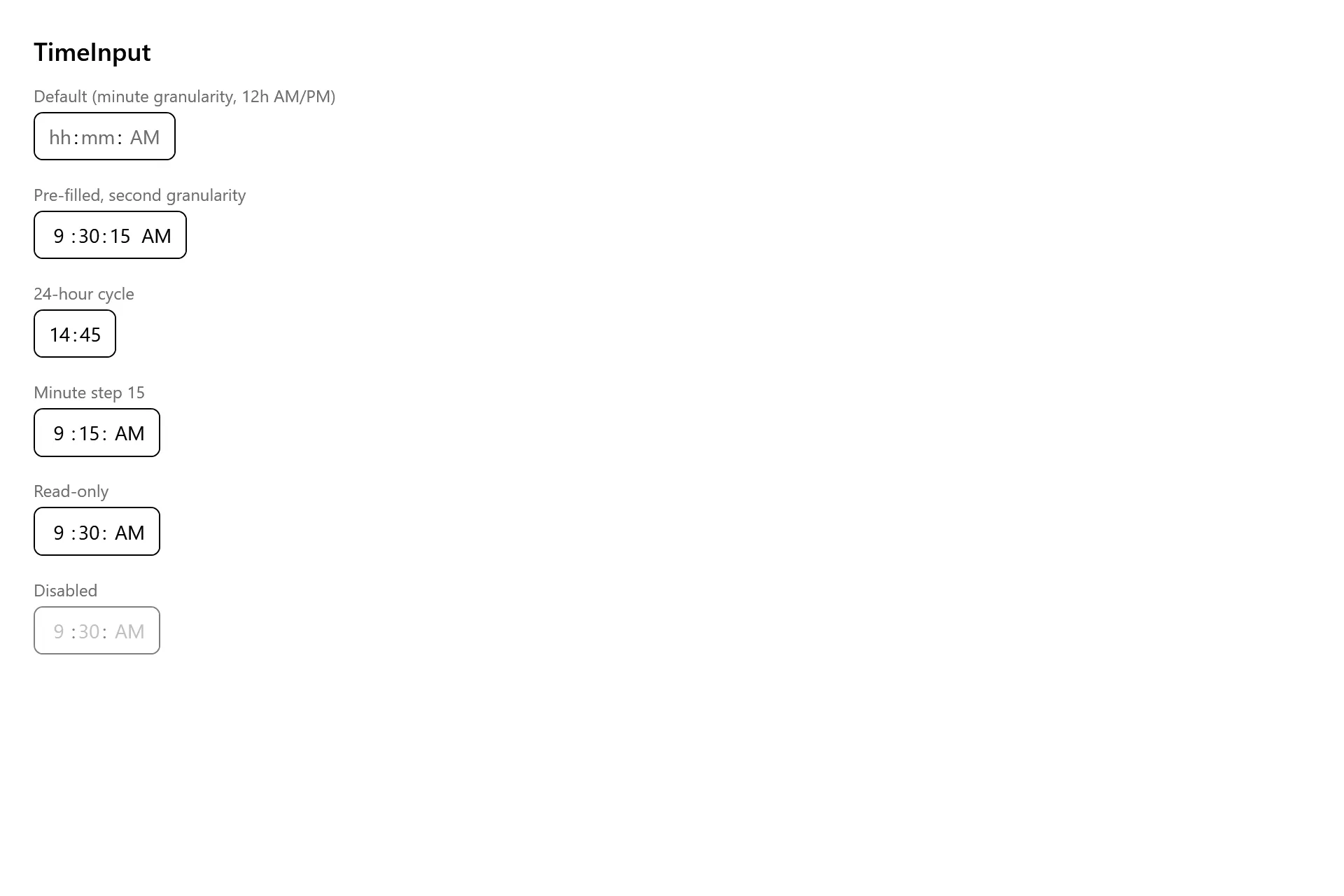

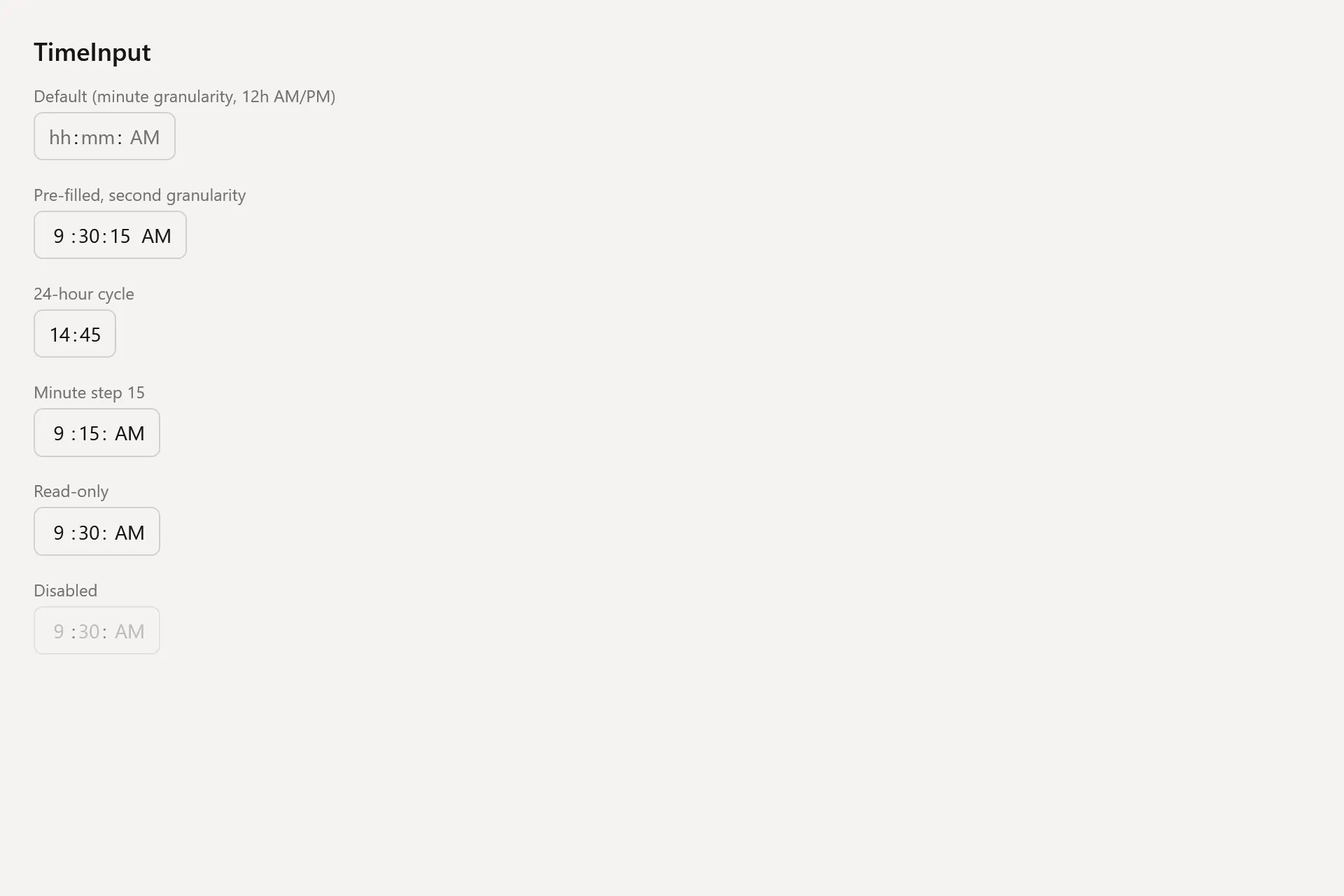

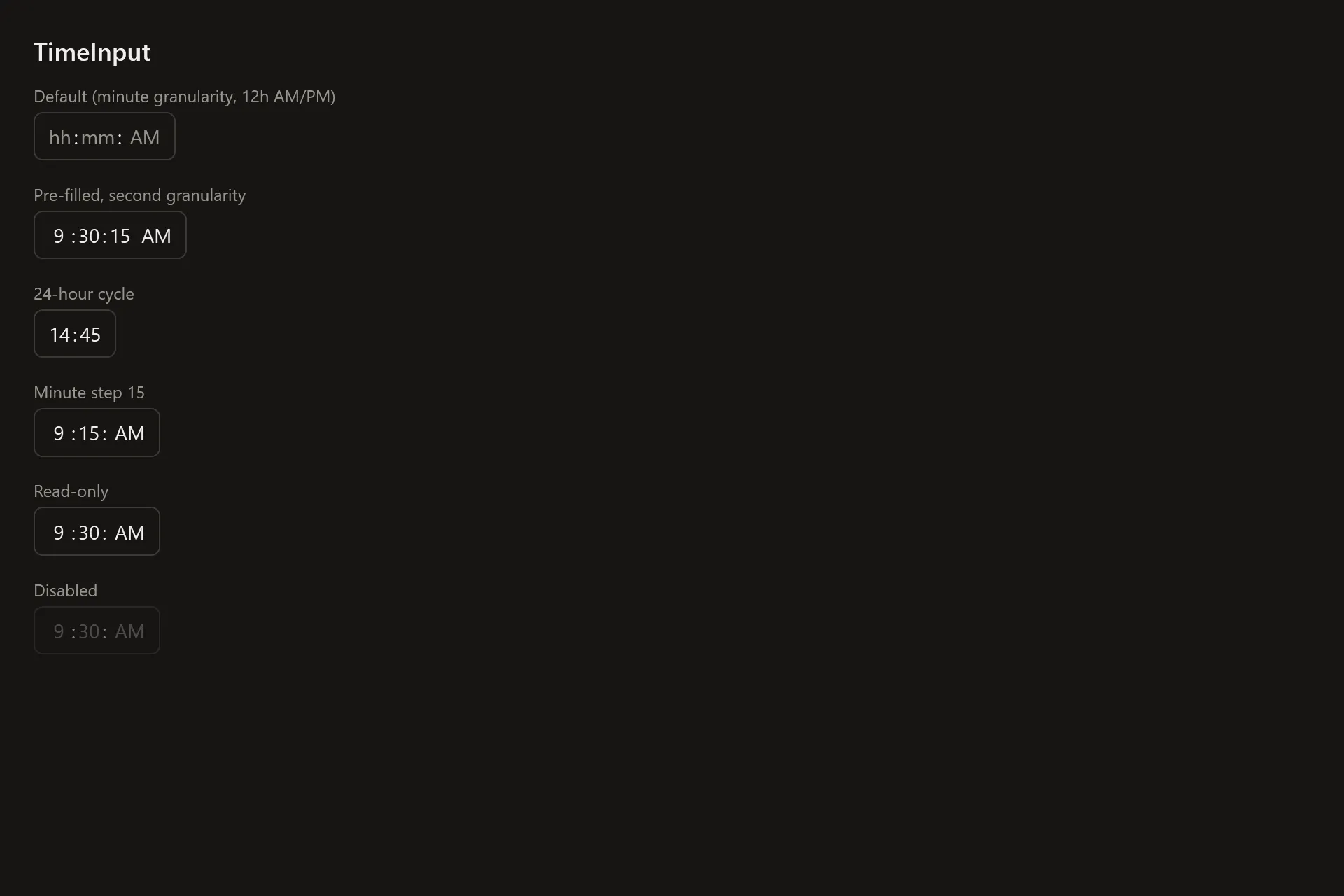

The TimeInput Gallery page rendered at the pinned commit, in each theme.
