OneTimePasswordField

Overview

OneTimePasswordField is a lookless Control folding the web family’s Root/Cell/HiddenInput anatomy into one control that owns and builds Length single-character NaviusOneTimePasswordFieldInput cells directly in code (the same “control owns its parts” precedent as NaviusRadioGroup/NaviusCheckboxGroup), driving them from a pure, WPF-free OneTimePasswordBuffer that implements the whole advance/backspace/delete/paste keyboard table. There is no HTML form to submit in WPF, so AutoSubmit and the hidden aggregate input are replaced with bubbling routed events.

Usage

xmlns:otp="clr-namespace:Navius.Wpf.Primitives.Controls.OneTimePasswordField;assembly=Navius.Wpf.Primitives"

<otp:NaviusOneTimePasswordField Length="6"
                                Value="{Binding Code, Mode=TwoWay}"
                                ValidationType="numeric"
                                Orientation="horizontal"
                                AutoFocus="True" />

Properties

Property	Type	Default	From	Description
Length	int	6	NaviusOneTimePasswordField	Number of single-character cells; also the max aggregate value length.
Value	string?	null	NaviusOneTimePasswordField	Controlled aggregate value (space-padded over interior gaps). Two-way via SetCurrentValue.
Disabled	bool	false	NaviusOneTimePasswordField	Disables every cell (IsEnabled mirrors !Disabled).
ReadOnly	bool	false	NaviusOneTimePasswordField	Marks every cell read-only.
ValidationType	string	"numeric"	NaviusOneTimePasswordField	"numeric", "alpha", or "alphanumeric"; culture-aware char.IsDigit/IsLetter/IsLetterOrDigit classification, same semantics as the web contract. Input outside the class is rejected.
SanitizeValue	Func<string, string>?	null	NaviusOneTimePasswordField	Optional transform applied to each character or pasted string after ValidationType filtering.
Type	string	"text"	NaviusOneTimePasswordField	"text" or "password" (masks each cell’s glyph with a bullet; the logical character stays in the buffer).
Orientation	string	"vertical"	NaviusOneTimePasswordField	"vertical" or "horizontal"; determines which arrow keys navigate between cells.
Placeholder	string?	null	NaviusOneTimePasswordField	Applied as each cell’s ToolTip.
AutoFocus	bool	false	NaviusOneTimePasswordField	Focuses the first cell once the template is applied.
AutoSubmit	bool	false	NaviusOneTimePasswordField	When true, raises AutoSubmitted once every cell is filled, immediately after Complete.
Index	int	0	NaviusOneTimePasswordFieldInput	Zero-based slot this cell occupies; set by the root when it builds the cells.
Char	char?	null	NaviusOneTimePasswordFieldInput	The logical single character held by this cell.
IsMasked	bool	false	NaviusOneTimePasswordFieldInput	When true, the cell’s displayed Text renders a bullet instead of Char.

DefaultValue (an uncontrolled initial aggregate value) appears in the web parameter table but is not ported: there is no DefaultValue DP on NaviusOneTimePasswordField (an M6-confirmed disparity). A consumer sets Value directly. NaviusOneTimePasswordFieldHiddenInput and its Name/Form parameters drop entirely (no HTML form submission in WPF, per docs/adr/0001-web-form-participation-params.md).

Events

Event	Signature	Fires when
ValueChanged	EventHandler<OtpRoutedEventArgs> (bubbling RoutedEvent)	The aggregate Value changes, after any buffer edit.
Complete	EventHandler<OtpRoutedEventArgs> (bubbling RoutedEvent)	Every cell becomes filled (edge-triggered: fires once per empty-to-full transition).
AutoSubmitted	EventHandler<OtpRoutedEventArgs> (bubbling RoutedEvent)	Immediately after Complete, only when AutoSubmit is true.
SubmitRequested	RoutedEventHandler (bubbling RoutedEvent)	Enter is pressed in any cell. The WPF analog of “submit the closest enclosing form”: a containing NaviusForm or any ancestor can subscribe.

Keyboard interactions

Key	Behavior
Any character	Writes the focused cell (last character of the input wins) and advances focus to the next cell. A character failing ValidationType/SanitizeValue is rejected; the buffer is left untouched.
Backspace	Non-empty focused cell: clears it, shifts the remainder back, focus retreats one cell. Empty focused cell: clears the previous cell instead, focus retreats one cell.
Ctrl + Backspace	Clears the whole field and focuses the first cell.
Delete	Clears the focused character and shifts the remaining characters back one slot; focus stays put.
Up Arrow / Down Arrow	Previous/next cell, when Orientation="vertical" (the default).
Left Arrow / Right Arrow	Previous/next cell, when Orientation="horizontal".
Home	Focuses the first cell.
End	Focuses the last cell.
Enter	Raises SubmitRequested.
Paste	Replaces the entire field from slot 0 (regardless of the focused cell), then focuses the last filled cell (or the final cell if all fill).

All handling is on PreviewKeyDown/PreviewTextInput/DataObject.Pasting (the tunneling phase and the dedicated paste event), confirmed by the M6 audit to run before the hosted TextBox cell consumes navigation keys, the same class of fix NumberField needed but this family already had right. Paste is a DataObject.Pasting handler rather than a length heuristic on typed input: WPF decouples paste from PreviewTextInput entirely, so every cell uses a uniform MaxLength=1; the web contract’s cell-0-only maxlength=Length quirk (needed there only to detect a multi-character paste through a single oninput length check) has no reason to exist in this port and does not carry over.

UIA mechanism

NaviusOneTimePasswordFieldAutomationPeer (internal, a FrameworkElementAutomationPeer declared inline in NaviusOneTimePasswordField.cs rather than its own file) reports AutomationControlType.Group for the root, mirroring the web’s role="group". Each cell gets AutomationProperties.Name = "Character {Index + 1} of {Length}" set directly by the root when it builds the cells. The unit suite exercises the buffer mechanics (advance, backspace shift-back and retreat, delete shift-back, Ctrl+Backspace clear-all, paste-from-slot-0 with no off-by-one) as pure OneTimePasswordBuffer tests with no STA thread required, plus the real keyboard routing and Complete/AutoSubmitted edge-triggering against a real control.

Known peer-name residual: each cell (NaviusOneTimePasswordFieldInput) derives from TextBox and does not override OnCreateAutomationPeer, so it inherits the stock TextBoxAutomationPeer rather than a custom one. That peer reports the generic UIA class name "TextBox", not anything specific to NaviusOneTimePasswordFieldInput, so a screen reader sees each cell as a plain edit control (its AutomationProperties.Name “Character N of M” still comes through correctly; only the class name is generic). This was not flagged as a fix in the M6 audit for this family, so it stands as a pre-existing, code-observed gap rather than an audited disparity, stated here plainly.

Web deltas

• The web’s 3 parts (Root/Cell/HiddenInput) fold into one Control (NaviusOneTimePasswordField) that builds Length NaviusOneTimePasswordFieldInput cells directly into a PART_Cells panel in code, rather than a user-composed part-by-part API.
• NaviusOneTimePasswordFieldHiddenInput and its Name/Form parameters are dropped entirely: there is no HTML form submission in WPF (docs/adr/0001-web-form-participation-params.md).
• AutoSubmit’s web behavior submits the closest HTML <form> via JS interop, which has no WPF equivalent. Enter always raises a bubbling SubmitRequested event (any ancestor, including a containing NaviusForm, can subscribe); AutoSubmit=true additionally raises AutoSubmitted once every cell fills, immediately after Complete. Nothing is invoked directly.
• Cell 0’s web-only maxlength=Length quirk (needed to detect a multi-character paste through a single oninput length heuristic) does not port: WPF surfaces paste through the separate DataObject.Pasting event, fully decoupled from typed PreviewTextInput, so every cell uses a uniform MaxLength=1.
• autocomplete="one-time-code" (mobile keyboard/SMS autofill targeting) has no WPF analog and is dropped, as anticipated by the WPF strategy notes.
• IME/composition input is not specially handled, matching the web source, which also has none.
• The space-sentinel Densify/round-trip encoding for interior gaps in the aggregate Value string is preserved exactly, keeping slot indices stable.
• DefaultValue (uncontrolled initial aggregate value) is documented on the web root but was dropped silently and undocumented in the original port; recorded here per the M6 audit. A consumer sets Value directly.
• Known residual, peer name: each cell’s automation peer is the stock TextBoxAutomationPeer (class name "TextBox"), not a custom peer naming the cell type; see UIA mechanism above.
• Known residual (M6 audit, unfixed, cosmetic): PART_Cells is a hardcoded Orientation="Horizontal" StackPanel with no visual trigger keyed off the control’s own Orientation property, so Orientation="vertical" (the default) still renders cells in a horizontal row even though Up/Down are the active navigation keys in that mode. Parity-faithful to the web contract (whose data-orientation drives keys, not necessarily the visual axis), but a UX oddity left as a product decision, not fixed.
• Known residual (M6 audit, unfixed, cosmetic): the data-filled-equivalent visual trigger for a filled cell keys on an empty Text check but resolves to the same brush (Navius.Input) as the default, so there is no visible filled-vs-empty distinction in the current theme.

Captures

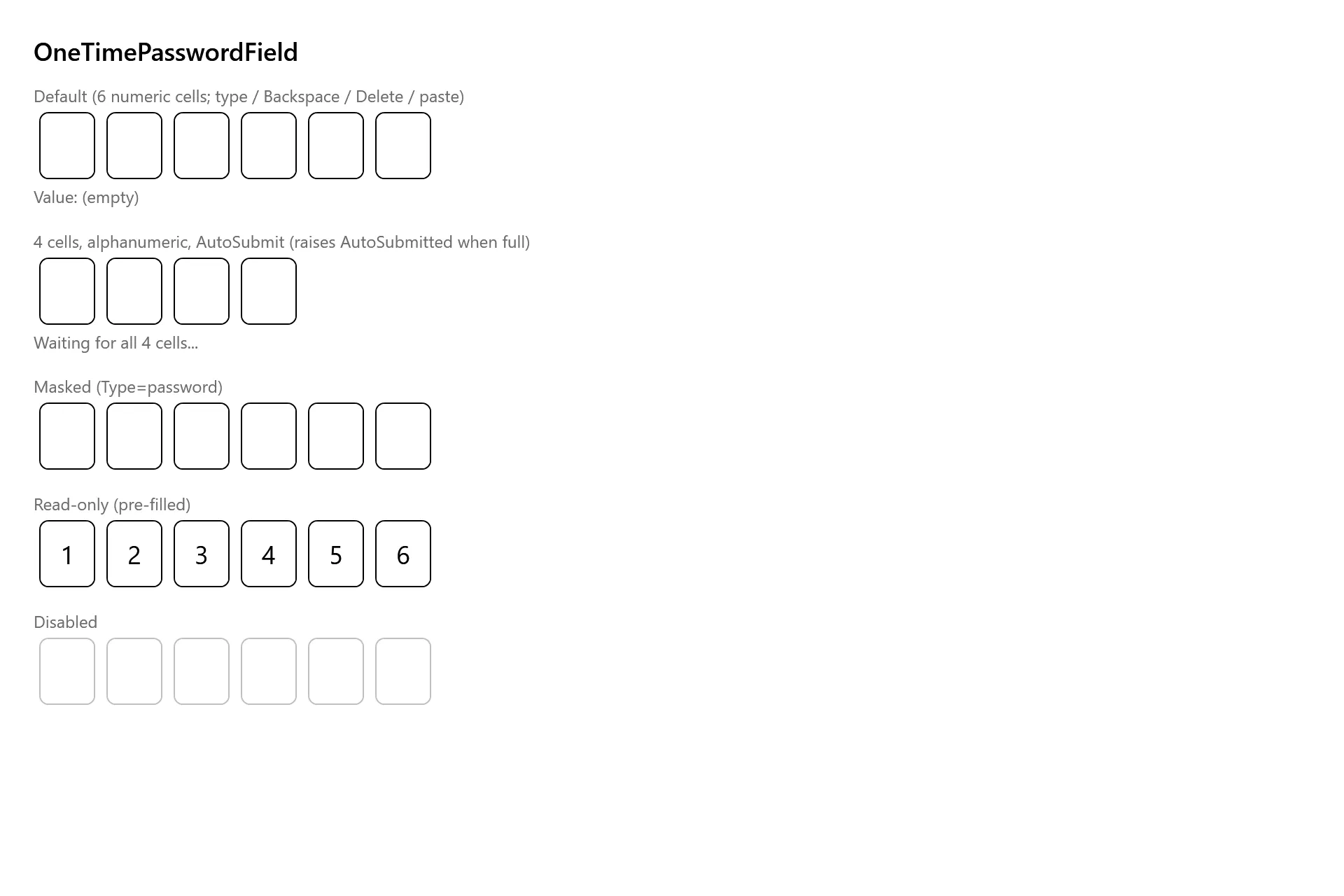

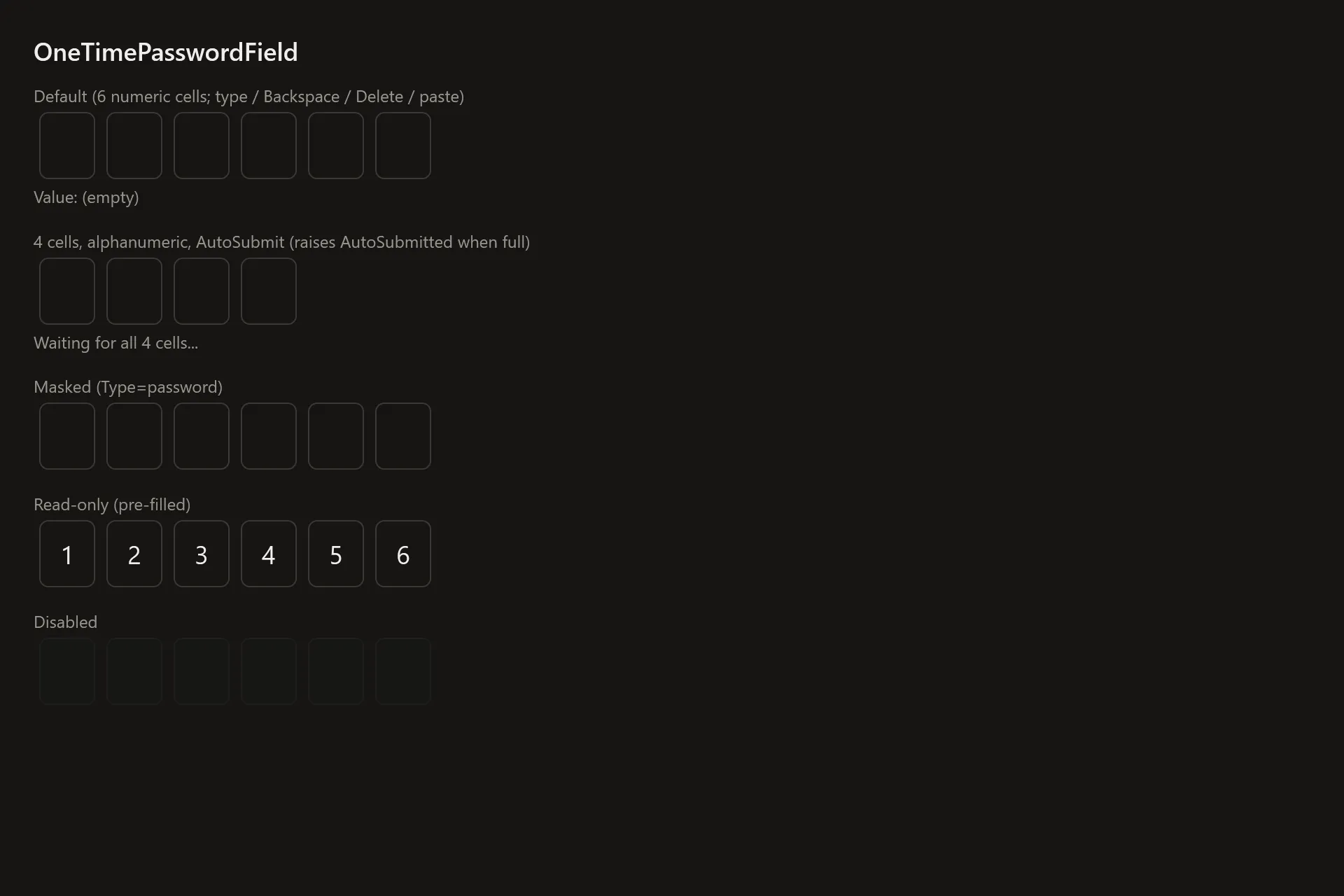

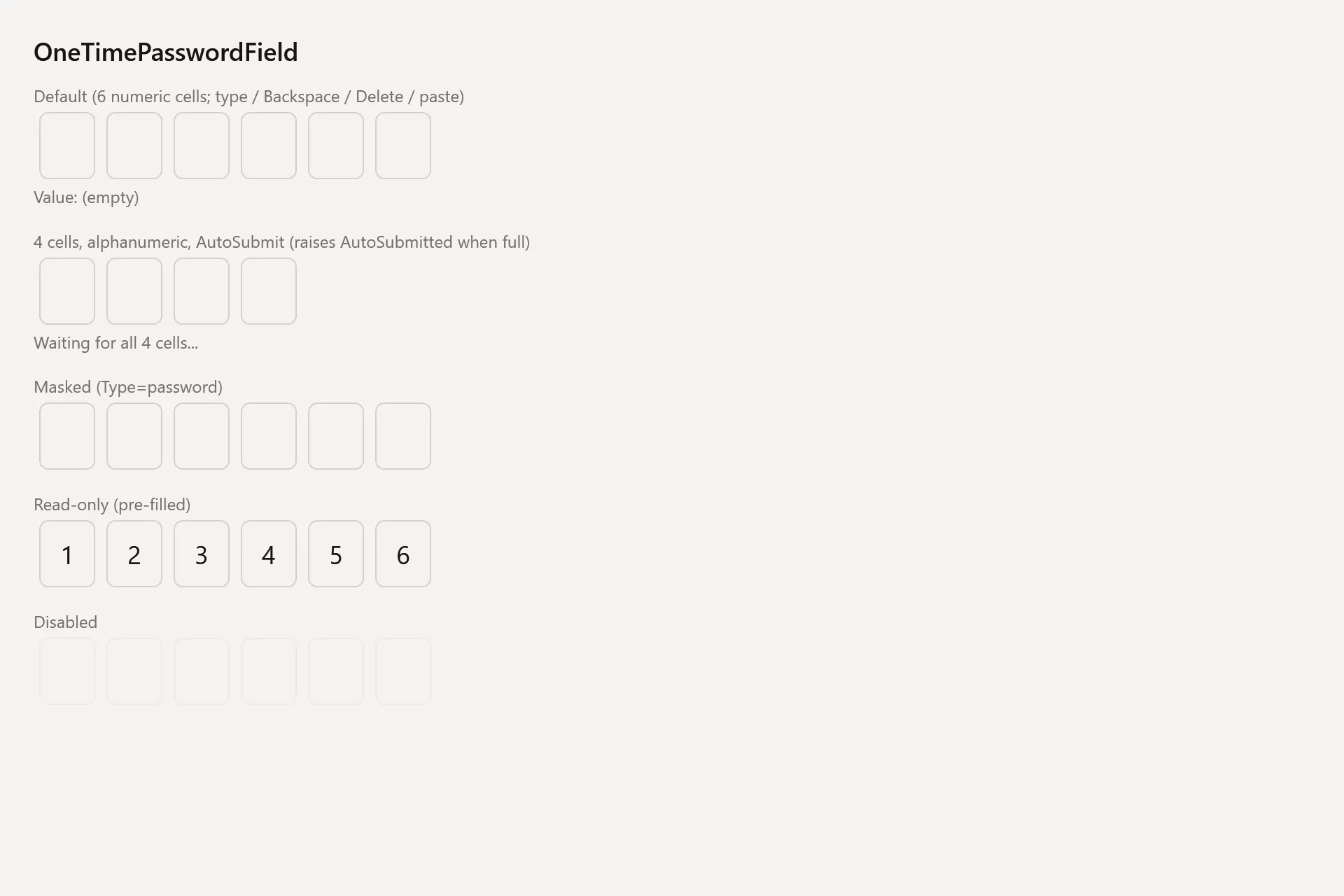

The OneTimePasswordField Gallery page rendered at the pinned commit, in each theme.
